57mm Propeller governor unit with night mode.
Also available (as an option in the selection below), is the CS57 <-> iris cable, which can then communicate with iris devices passing airspeed to the CS unit. The cable is 50cm in length.

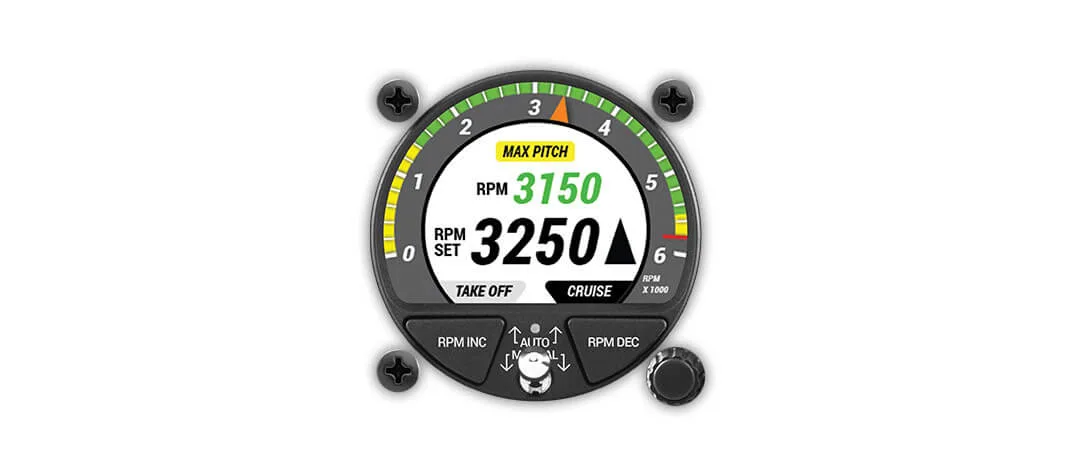

Constant Speed 57 Controller
£849.00 – £888.00 VAT Included -4%
Pound sterling (£) - GBP
constant speed 57 controller
Propeller governor
with night mode
Auto mode
Controls the propeller pitch to reach or hold the desired engine RPM.
Manual mode
Increase and Decrease buttons are hardwired so will work even in the case of an electrical failure.
Night mode
Device has an ambient light sensor which will turn device in Night mode – dark background with less back light.
Display
LX navigation use the highest quality displays which work great in high sunshine conditions which are a standard in cockpit.
Size
62mm x 65mm x 55.5mm
Weight
188 grams
Consumption
120 mA @ 12 V DC
Power supply
10 – 28 V DC
Your new flying companion with measuring zone 800 - 9999 RPM
Max motor supply
8 A
Min RPM voltage
10 A
RPM resolution
10 RPM
The latest Software, Databases, Manuals, Cut-outs and Technical Documentation can be downloaded from the LX navigation portal.
| Weight | 0.5 kg |
|---|
