£510.00 – £585.00 VAT Included
Standalone configurable altimeter with a built-in backup battery, which can also be configured as a vertical speed indicator.
The latest Software, Databases, Manuals, Cut-outs and Technical Documentation can be downloaded from the LX navigation portal.
Iris series was designed to be installed in ultralight or experimental aircraft where it can replace all analog basic instrument.
Futuristic, glass cockpits are the way to go and iris series instruments are the ultimate solution.
LX navigation strives to use only top-notch components to build ultimate instruments for the best experience.
Iris series are fine calibrated and known as one of the most accurate instruments on the market.
LX navigation strives to develop easy to use as well as easy to install instruments. To provide clear functions and actions, we mark every button or rotary knob.
The same applies to the back of the device, where we mark each port. The installation and wiring of an iris should not take more than 30 minutes of your time.
57 mm / 80 mm
WiFi via Can2WiFi
Non TSO
With CAN2WiFi device you can connect to iris series via any smart device (Phone, Tablet, PC, MAC) and adjust information position, size and colour.
Change the airspeed markings. Change the units. Adjust the background colour. Minutes before installing.
All iris devices come with backup battery in case of electrical failure with at least 3 hours of operation, which is activated only if you lose power mid-flight.
Numerous flights have been saved using backup battery power.
57mm Variant: (WxLxD)
62mm x 62mm x 52mm
80mm Variant: (WxLxD)
82mm x 82mm x 52mm
57mm Variant: 214g
80mm Variant: 278g
9 – 30 V DC
250 mA @ 12 V DC
There is only one rotary push button, with which you can set the QNH and brightness of the display.
While it is very easy to configure the device using Can2WiFi, it is impossible to make any changes while Can2WiFi is not connected. This makes it perfect for use in clubs or flight schools, as the layout cannot be changed by the pilots.
Transflective display technology is the best for use in a cockpit. The iris EFIS also has the biggest display in the 80mm variant on the market.
We strive to make our instruments easy to install and use. That is why we use CAN bus to connect our devices.
Finely tuned devices go through a complex process of calibration to provide the most accurate information.
A unique function developed to offer the best user experience – from manufacturers to service personnel and the final user – the pilot.
The iris all-in-one is a standalone flight instrument that combines an airspeed indicator, vertical speed indicator, and altimeter into a single device with a built-in backup battery. It comes with an OAT (Outside Air Temperature) sensor included, allowing it to display OAT, True Airspeed (TAS), and density altitude. With an optional GPS module upgrade, it can also display ground speed.
With a rotary knob the QNH and brightness can easily be adjusted.

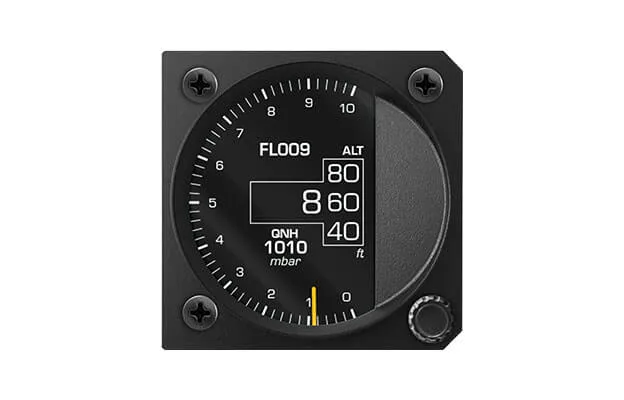

The iris altimeter is a standalone altimeter with a backup battery. It can display altitude, Flight level, vertical speed and current QNH setting. With an optional OAT (Outside Air Temperature) sensor it can also display OAT and density altitude.
With a rotary knob the QNH and brightness can easily be adjusted.
The iris altimeter is a standalone airspeed indicator with backup battery. It displays indicated airspeed, however if you connect it to the iris ALT, it can also display true airspeed. With an optional GPS module upgrade, it can also display ground speed.
The iris G-force delivers a super accurate information about G-force load applied to the pilot and aircraft. It also shows minimum and maximum G-load. It contains a backup battery.
With a rotary knob the brightness can easily be adjusted.
The iris chrono is a device which displays UTC time, local time and flight time. All of this data is received from built in GPS module. There is also a stopwatch, which can be started and stopped by pressing a turn knob. Apart from controlling the stopwatch, the turn knob can also be used to adjust the brightness. The iris chrono has a backup battery inside.
The GPS antenna comes included with this device.
Do you want two or more iris instruments on board? Perhaps you fly a tandem seat airplane or you simply want to the data arranged on more than one display?
Iris display is the solution for you. It is the same iris device, but without sensors. You can connect it to any of iris devices using a CAN cable. Iris display can show all of the data that is measured by the device to which it is connected.
You can also connect it via WiFi to iLevil or BOM and get the data from there!
| All-in-one | Airspeed Indicator | Altimeter | G-force | Chrono | |
|---|---|---|---|---|---|
| Size | 57/80 | 57/80 | 57/80 | 57/80 | 57/80 |
| Display | 2.5/3.5″ | 2.5/3.5″ | 2.5/3.5″ | 2.5/3.5″ | 2.5/3.5″ |
| Battery | Up to 3h | Up to 3h | Up to 3h | Up to 3h | Up to 3h |
| Airspeed | Yes | Yes | Yes | No | No |
| Altitude | Yes | Optional | Yes | No | Optional |
| G-force | Yes | No | No | Yes | No |
| GPS | Optional | Optional | No | No | Yes |
| OAT | Yes | Optional | Optional | Optional | No |
| Rotary knob | Yes | Yes | Yes | No | Yes |
LX one chip™
32 GB internal memory
iris 80 | iris 57 |
|---|---|
| Power supply: 9 – 30 V DC | Power supply: 9 – 30 V DC |
| Power consumption: 250 mA @ 12 V | Power consumption: 250 mA @ 12 V |
| Battery: Built-in battery (3 hours) | Battery: Built-in battery (3 hours) |
Your iris comes with technical support and two-year limited warranty.
Returns are accepted within 14 days after you have received your device, with proof of purchase. To return an item, contact us at sales@lxnavigation.co.uk; return shipping is at your cost unless the item is defective. Refunds will be processed after inspection to the original payment method.
The latest Software, Databases, Manuals, Cut-outs and Technical Documentation can be downloaded from the LX navigation portal.
| Weight | 0.5 kg |
|---|---|
| Unit Size | 57mm, 80mm |
