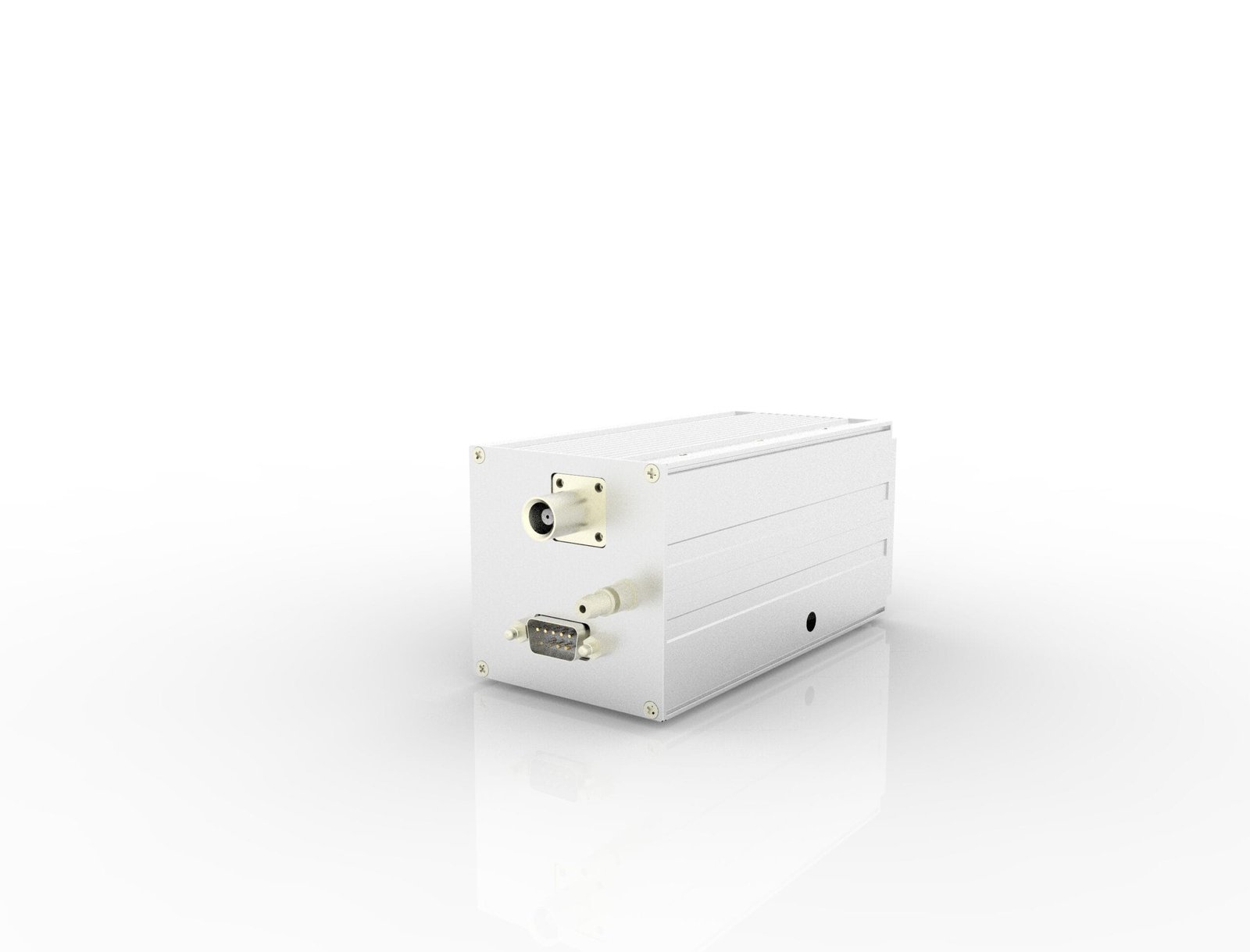

VT-01 Main Unit Mode-S Transponder Class 2

VT-01 Mode-S Transponder Class 2

Air Avionics

£1,579.00 – £1,787.00 VAT Included -1%

Pound sterling (£) - GBP
  • Pound sterling (£) - GBP
  • Euro (€) - EUR

VT-01: Two-block Mode-S Transponder.

  • – Install as single block or two block system.
  • – Best solution for club fleet installations or installation in different aircraft
  • – Installation cradle provides tool-less move of the central unit
  • – Integral alticoder (100ft or 25 ft resolution)
  • – Installation in small panels with less space
  • – Output power: min. 220 Watt (Class-1), or min. 150 Watt (Class-2)
  • – Level 2es (extended Squitter)
  • – ADS-B out capable (non certified SIL=0/SDA=0)
  • – Direct-GPS NMEA Interface for ADS-B out, no Interface required
  • – Ultra low power current, no external cooling required
  • – CAN-Bus Interface for future applications (i.e. TIS)
  • – COMM-A/B Interface via CAN-Bus

Technical Details:

  • Mode-S transponder
  • Available in 2 versions:
    • Class 1: 250 W, up to 35000 ft, ≤ 250 kt
    • Class 2: 150 W, up to 15000 ft, ≤ 175 kt
  • ETSO certified
  • Integrated altitude encoder
  • Ultra compact: 60 mm (W) x 60 mm (H)
  • Mounts into 2-1/4″ instrument hole

Installation:
The VT-01 main unit is normally installed using the VT-01 Mounting Rack (this is an option below when purchasing).

Wiring:
The VT-01 requires a wiring harness from the steering unit to main unit, which is a standard D-SUB Harness.  You will need a power supply cable and this is also a standard D-Sub so you can create your own one or use finished product VT-0103-2.
In addition to the connectors, a data cable is also required (GAV-4709-0005A). This is available to purchase below in 1m, 3m or 5m length options.

Typical VT-01 Installation:
– Main unit (VT0102)
– Control head/Steering unit (VT-0101)
– Mounting Rack (VT-0103-1)
– Connection Kit/Power supply cable (VT-0103-2)
– Data cable (GAV-4709-0005A)
