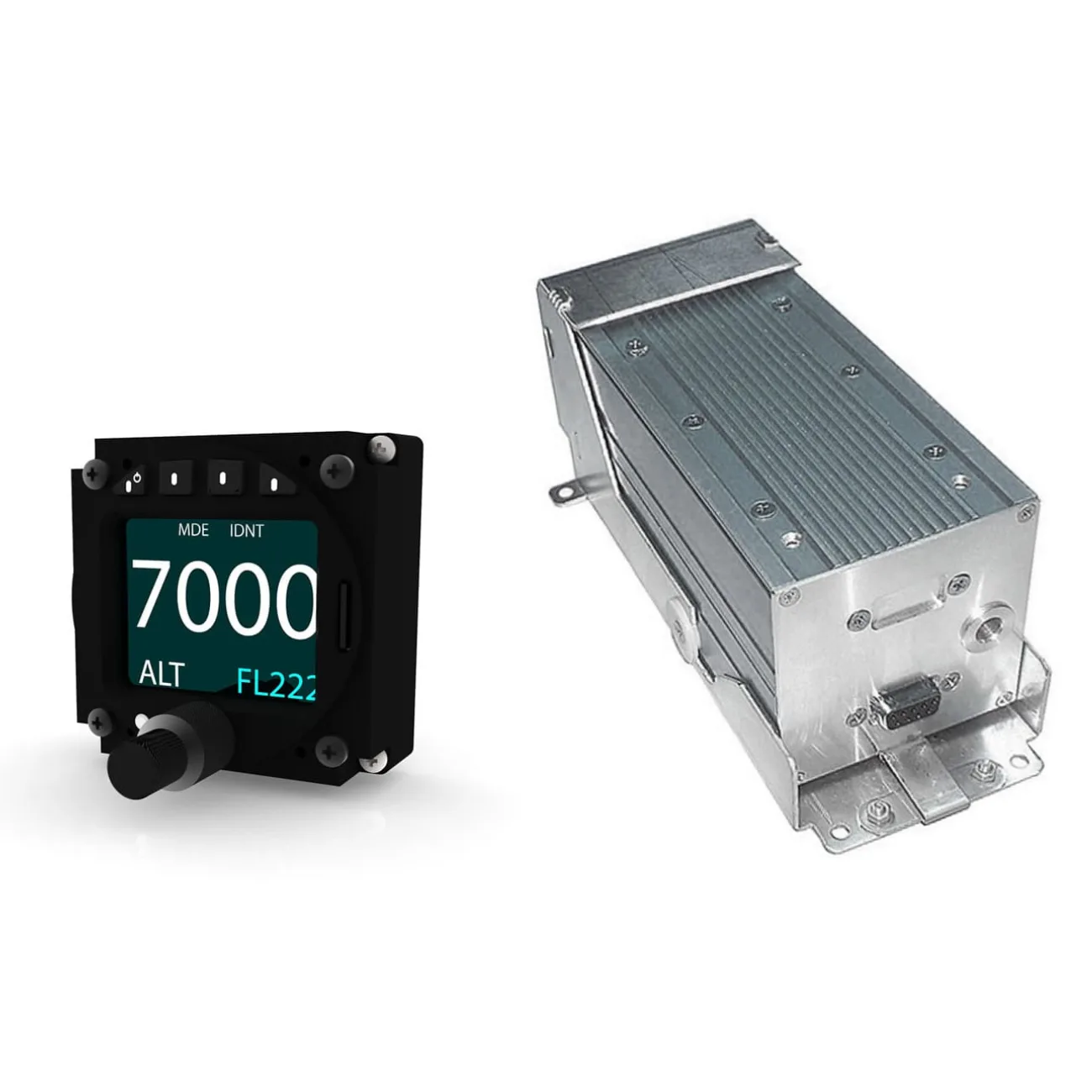

AIR Control Display and VT-01 transponder kit

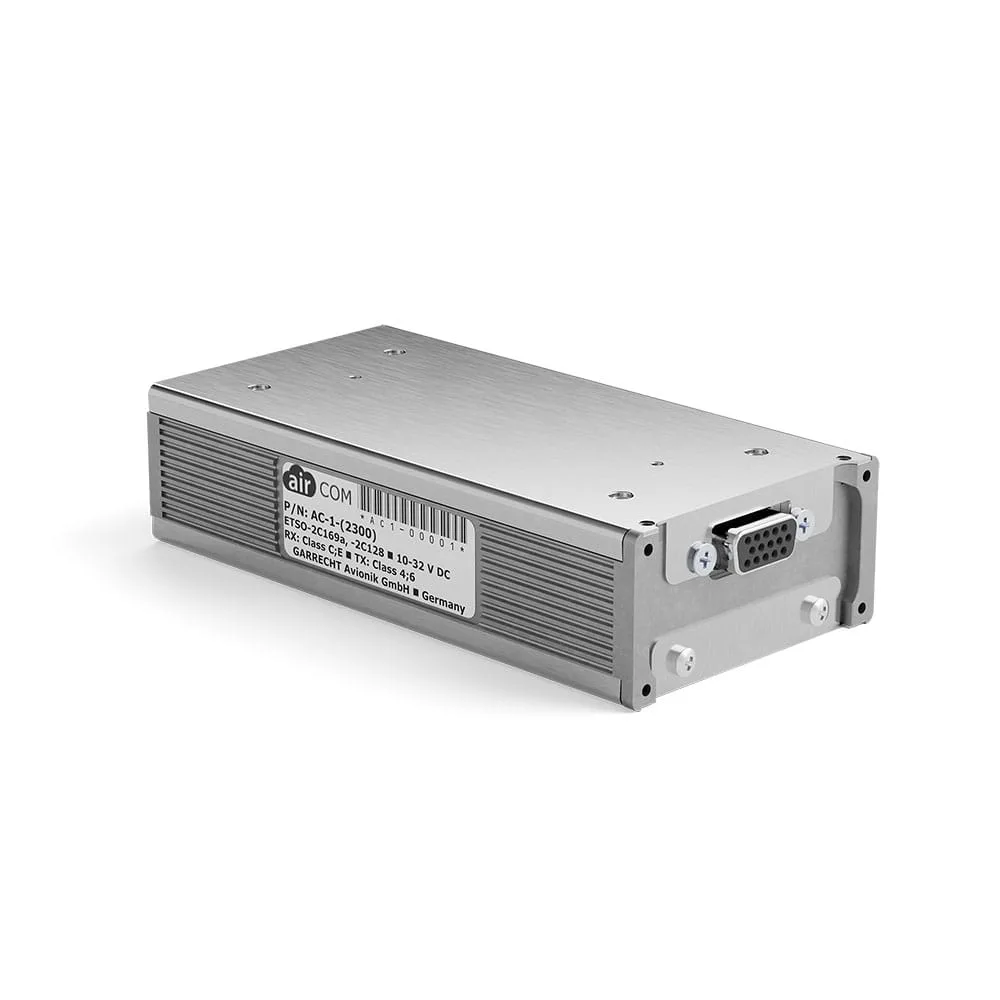

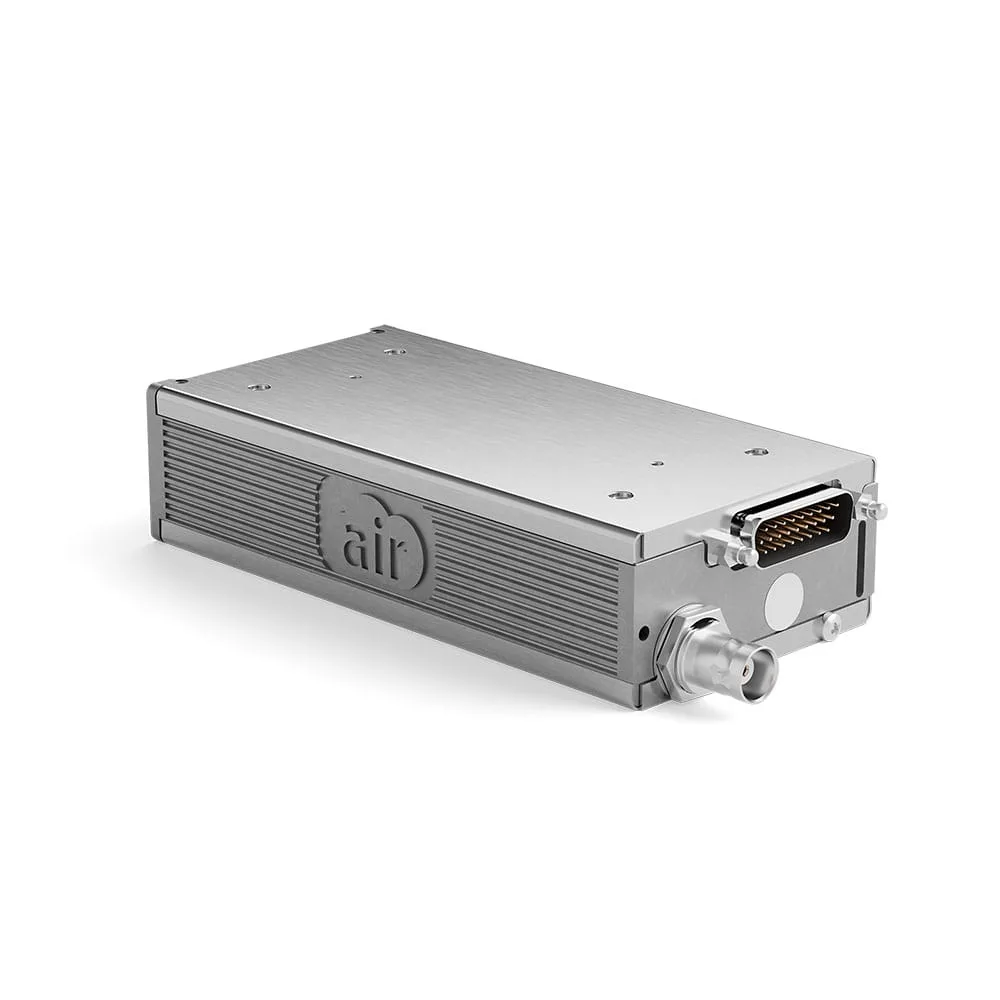

AIR COM Aircraft Radio (AC-1)
AIR COM Aircraft Radio (AC-1)
AIR Control Display and AIR COM Radio Kit
AIR Control Display and AIR COM Radio Kit
AIR Control Display and AIR COM Radio Kit
AIR Control Display and AIR COM Radio Kit

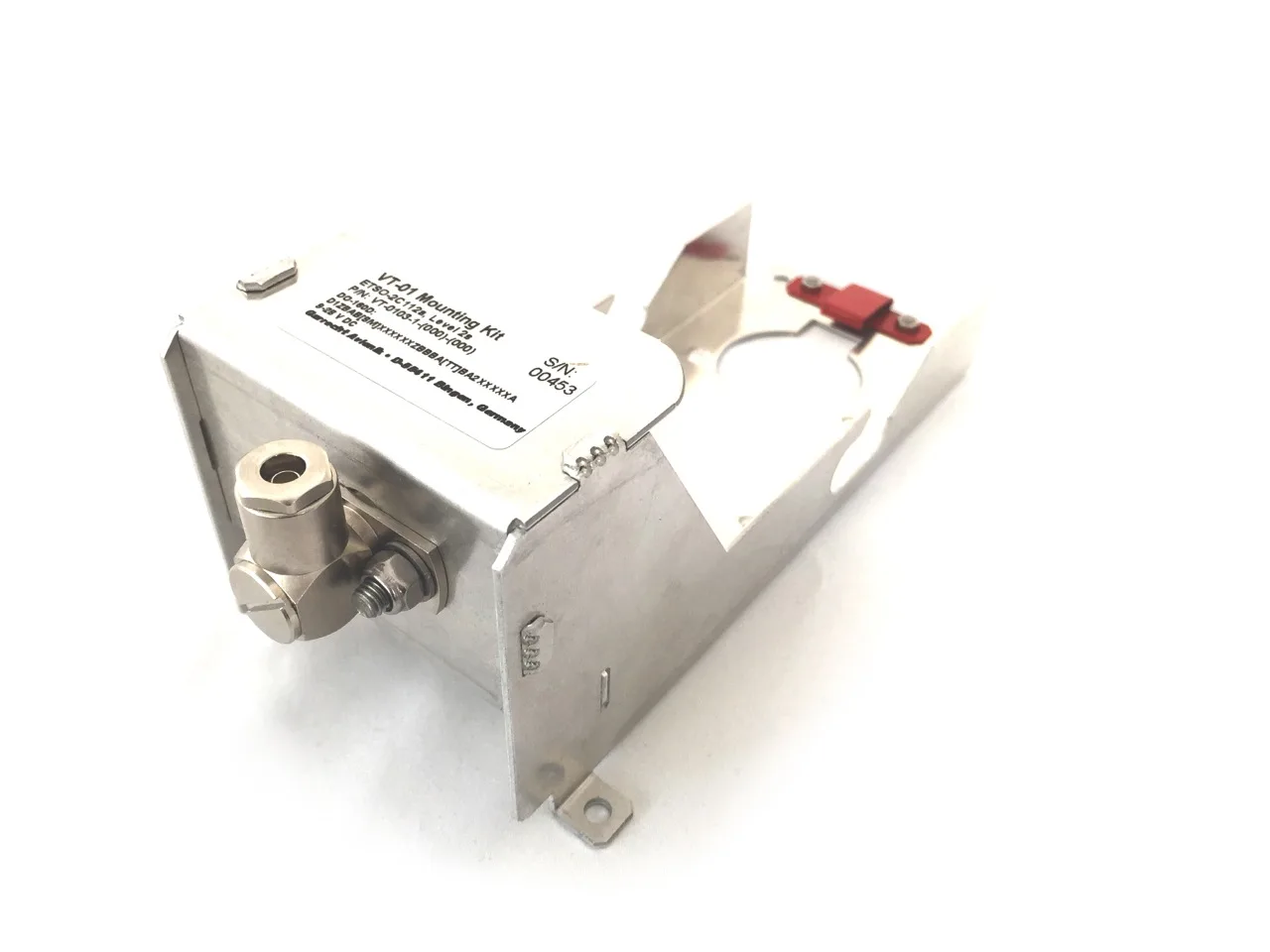

VT-01 Mode-S Transponder Mounting Rack
VT-01 Mode-S Transponder Mounting Rack
AC-1 to ACD57 mounting kit

Complete AIR Control Kit: AIR Control Display, AIR COM Radio and VT-01 Transponder (Class 2)

Air Avionics

Price range: £2,999.00 through £3,285.00 VAT Included -7%

Complete kit consisting of the AIR COM radio with transponder (class 2) module for concealed installation, installation accessories, and AIR Control Display operating unit. This kit enables the use of a radio and transponder connected to one AIR Control Display operating unit.

Scope of delivery:

  • AIR Control Display standard scope of delivery
  • AIR COM 8.33kHz radio standard scope of delivery
  • Installation bracket AIR COM on ACD-57
  • VT-01 Class II Mode-S transponder standard scope of delivery
  • Installation frame for VT-01 transponder (concealed installation)
  • Connecting cable VT-01 to AIR Control Display

This kit includes all required parts to use a VT-01 (Class 2) transponder module and an AIR COM 8.33kHz Radio with an AIR Control Display (ACD-57).

What’s in the bundle

      • ACD-57 main unit including static port adapter
      • VT-01 Mode-S Transponder (Class 2) main unit
      • AIR COM 8.33kHz Radio
      • Installation bracket AIR COM on ACD-57
      • VT-01 Class II Mode-S transponder
      • Installation frame for VT-01 transponder (concealed installation)
      • Connecting cable VT-01 to AIR Control Display
      • Mounting screws
      • Documentation (including EASA FORM 1)
      • microSD Memory Card
      • Coupon for 2 years of free channel database updates

Some functions require additional software licences to be installed at cost (the Altimeter Licence can be added to your selection or purchased separately at a later date).

Please Note: When using the VT-01 Mode-S Transponder Mounting Rack, only antenna cables of type RG-400 are compatible (antenna cables not included).

What is the difference between Class 1 and Class 2?

Class 1 transponders are more powerful and increase your visibility to ground radar stations during long flights at higher altitudes (15,000ft+). For most glider pilots, a Class 2 transponder is sufficient and uses less battery power.

VT-01 Mode-S Transponder (Class 2).

All advantages of VT-01

      • Install as single block or two block system.
      • Best solution for club fleet installation or installation in different aircraft
      • installation cradle provides tool-less move of the central unit
      • integral alticoder (100ft or 25 ft resolution)
      • Installation in small panels with less space
      • Output power: min. 220 Watt (Class-1), or min. 150 Watt (Class-2)
      • Level 2es (extended Squitter)
      • ADS-B Out (non certified SIL=0/SDA=0)
      • Direct-GPS NMEA Interface for ADS-B out, no Interface required
      • Ultra low power current, no external cooling required
      • CAN-Bus Interface for future applications (i.e. TIS)
      • COMM-A/B Interface via CAN-Bus

Technical Details:

      • Mode A/C/S transponder
      • Available in 2 versions:
        • class 1: 250 W, up to 35,000 ft, ≤ 250 kt
        • class 2: 150 W, up to 15,000 ft, ≤ 175 kt
      • ETSO certified
      • Integrated altitude encoder
      • Ultra compact: 60 mm (W) x 60 mm (H)
      • Mounts into 2-1/4″ instrument hole
