iris EFIS

LX navigation

£1,249.00£1,489.00 VAT Included

iris EFIS is a standalone PFD instrument with a single page layout.

With iris EFIS pro you will get Route (RTE) and Airport (APT) navigation with airspace support and 3D terrain maps with 12 different colour palettes, G-force page, Logbook and much more.

Both versions have the same hardware, so you can simply unlock the pro features later!

iris EFIS

Ultimate PFD instrument with a backup battery

Ultra-precise AHRS module inside

Next generation

Next-generation of PFD instruments is the ultimate solution for equipping your ultralight, microlight, TMG or experimental aircraft.

Equip your UL / experimental

Iris series was designed to be installed in ultralight or experimental aircraft where it can replace all analogue basic instruments.

Digital cockpit

Futuristic, glass cockpits are the way to go and iris series instruments are the ultimate solution.

Ultra precise

LX navigation strives to use only top-notch components to build ultimate instruments for the best experience.

Accuracy is the key

Iris series are finely calibrated and known as one of the most accurate instruments on the market.

Intallation and configuration

The back is as important as the front

LX navigation strives to develop easy to use as well as easy to install instruments. To provide clear functions and actions, we mark every button or rotary knob.

The same applies to the back of the device, where we mark each port. As the iris EFIS has all of the sensors and modules inside, installation and wiring should not take more than 30 minutes of your time.

Cutout size

57mm / 80mm

Connectivity

WiFi & Bluetooth

Certification

Non TSO

Version

iris EFIS / iris EFIS pro

iris EFIS pro

Upgrade to iris EFIS pro anytime

iris EFIS is a standalone PFD with a single page layout.

With iris EFIS pro you will get Route (RTE) and Airport (APT) navigation with airspace support and 3D terrain maps with 12 different colour palettes, G-force page, Logbook and much more.

Both versions have the same hardware, so you can simply unlock the pro features later.

Backup & memory

Backup battery is our standard

All our devices come with backup battery in case of electrical failure with at least 3 hours of operation, which is activated only if you lose power mid-flight.

Numerous flights have been saved with backup battery power.

3 hours

Size

57mm Variant: (WxLxD)
62 x 62 x 52 mm
80mm Variant: (WxLxD)
82 x 82 x 52 mm

Weight

57mm Variant: 214g
80mm Variant: 278g

Power supply

9 – 30 V DC

Consumption

250 mA @ 12 V DC

2 push buttons, 2 rotary push buttons

LX navigation designed the smart and intuitive button layout for the best user-experience in the cockpit.

Simple control over the complex device

User experience is superb, as you move through pages with two buttons and select your options with push function. Each page is designed to be readable and clear to understand.

The biggest transflective display on the market

Transflective display technology is the best to use in a cockpit. The iris EFIS has the biggest display in the 80mm variant on the market.

Connectivity is the key

Striving to make all instruments easy to install and use. That is why CAN bus is used to connect LX navigation devices.

The most accurate airspeed indicator

Finely tuned devices go through a complex process of calibration to provide the most accurate information.

Configurable interface

A unique function developed to offer the best user experience – from manufacturers to service personnel and the final user – the pilot.

PFD page

PFD (Primary Flight Display) page provides essential flight information in a clear, organised layout, ensuring optimal situational awareness. It integrates critical data such as attitude, altitude, airspeed, and heading, all presented on a single screen for easy monitoring.

Setup page​

In the setup page all of the parameters of the device can be set. There are user settings, which can be saved to the pilot profile and system settings, which apply to the device.

Navigation pages

iris Efis pro

Upload free APT and TP files to plan, build and execute your own Route. Navigate to Airport, check its details, radio frequency, runway direction and runway terrain.

Select between 12 different 3D terrain colour palettes. Upload free airspace and manage them, adjust colours, disable and more.

G-force page

iris Efis pro

G-force page delivers a super accurate information about G-force load applied to the pilot and aircraft. In case a bigger scale is needed it can be easily adjusted with the left rotary knob.

Logbook page

iris Efis pro

This page is a digital pilot logbook that displays the last 50 flights, showing details such as flight date, duration, and pilot name. Pilots can access specific flight details by selecting a flight where additional information like take-off time, landing time, and max altitude is displayed.

If the device is connected to the internet, the logbook is also synchronised with the LX Cloud.

Info page

iris Efis pro

The Info page provides key details about the device, including GPS status, coordinates, and UTC time. It also displays information like outside air temperature (OAT), density altitude, and current power supply voltage. Additionally, the backup battery’s status is shown.

Unlock the full potential

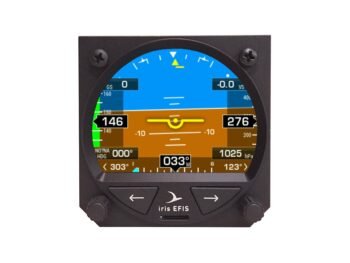

Discover iris EFIS pro display

Do you want two iris EFIS instruments on board? Perhaps you fly a tandem seat airplane or you simply want to use one device for PFD and another for navigation?

Iris EFIS pro display is a solution for you. It is the same device as iris EFIS, but without sensors. Just connect it to your iris EFIS with a CAN cable and you are good to go.

You can also connect it via Wi-Fi to iLevil or BOM and get the data from there!

More information

 iris EFISiris EFIS pro
Size57/8057/80
AHRSYesYes
G-forceNoYes
GPSYesYes
OATYesYes
APT navigationNoYes
RTE navigationNoYes
3D terrain mapsNoYes
LogbookNoYes
AirspaceNoYes
iris EFIS 80
iris EFIS 57
[download id=”3091″ template=”title”][download id=”3087″ template=”title”]
[download id=”3093″ template=”title”][download id=”3089″ template=”title”]

LX one chip™
32 GB internal memory, 32 GB external memory

iris EFIS 80
iris EFIS 57
Power supply: 9 – 30 V DCPower supply: 9 – 30 V DC
Power consumption: 250 mA @ 12 VPower consumption: 250 mA @ 12 V
Battery: Built-in battery (3-5 hours)Battery: Built-in battery (3-5 hours)

2 marked buttons:

  • Arrow left – goes one page left
  • Arrow right – goes one page right


2 Push-rotary knobs:

  • Right – change QNH, zoom in/out, access quick settings menu
  • Left – set heading bug

  • SD CARD port
  • RJ45 CAN port
  • RJ12 USER port
  • RJ12 INPUTS port
  • RJ12 FLARM port
  • 2,5 mm jack OAT port
  • 3,5 mm jack AUDIO port
  • 12 V power cable with connector
  • SMA BLUETOOTH/WIFI antenna connector
  • SMA GPS antenna connector

  • iris EFIS
  • 32 GB Micro SD card
  • OAT probe with 2.5 mm jack
  • Bluetooth/WiFi antenna with SMA connector
  • GPS antenna with SMA connector
  • Power cable
  • Screws for mounting

Your iris EFIS comes with manufacturer technical support and a two-year limited warranty.

Returns are accepted within 14 days after you have received your device, with proof of purchase. To return an item, contact us at sales@lxnavigation.co.uk; return shipping is at your cost unless the item is defective. Refunds will be processed after inspection to the original payment method.

Weight N/A
Size

57mm, 80mm

Version

Normal, Pro
